Description

Graymills IMS08-E Pump

Dependable, economical OEM replacements

Not ideal for liquids containing large amounts of foreign matter

Virtually maintenance-free

May be mounted above liquid level as well as other locations remote from tank

2 foot maximum suction lift

Can be combined with tanks to provide a complete, ready-to-install pumping system

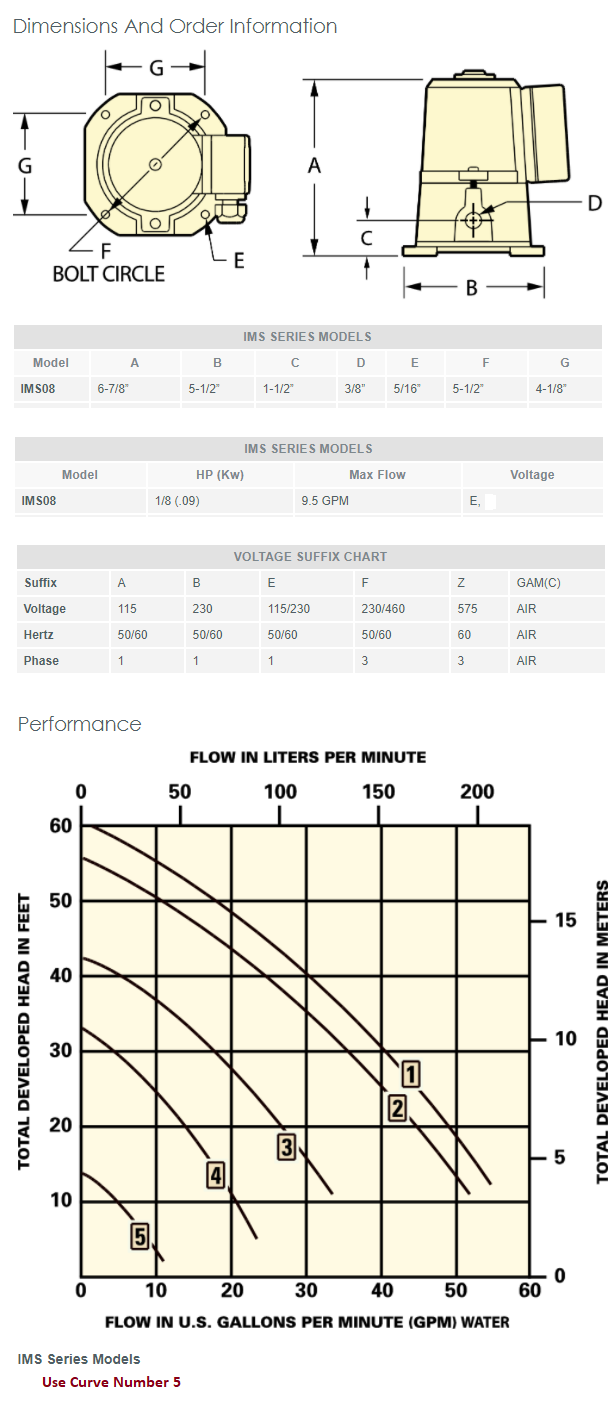

IMS08: 1/8 HP, TENV, 3450 RPM, 3/8” NPT horizontal  discharge above integral mounting flange

Materials:

Pump Body and Volute: Cast Iron

Shaft: Carbon Steel

Impeller:  IMV08 – Plastic

graymills ims08-e

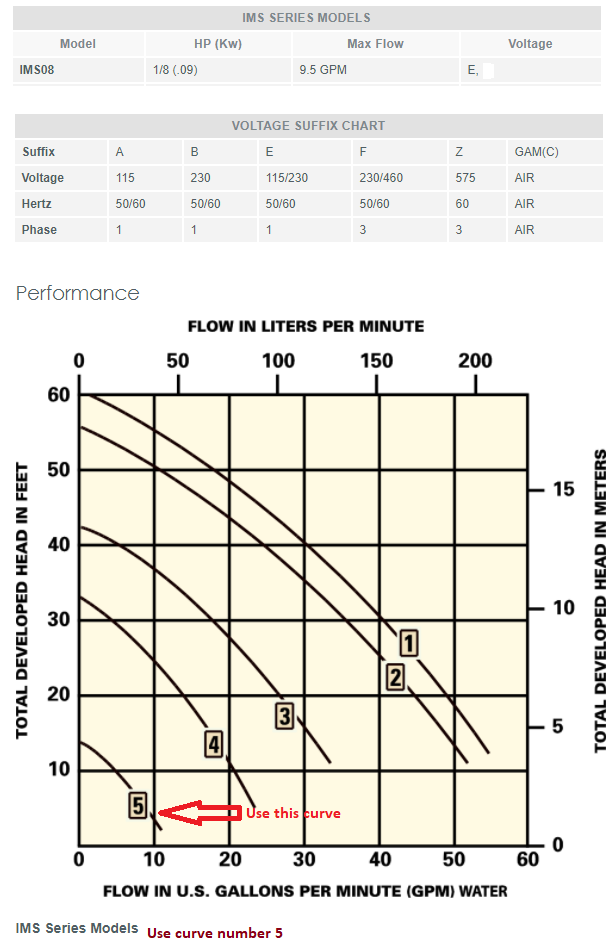

                                                                                   Use curve number 5
