Max GPM 3.1 | 316SS & PTFE | 1/4 NPT

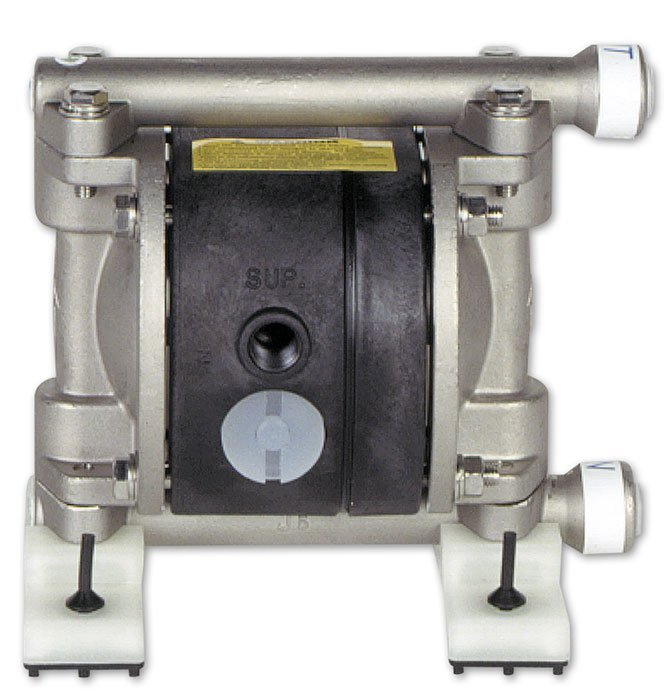

Yamada AOD Pump NDP-5FST 316SS & PTFE
Model # : NDP-5FST
Part # : 851565
Part # : 851565
Original price was: $910.00.$691.60Current price is: $691.60.
6 in stock (can be backordered)
6 in stock (can be backordered)
Description
3.4 Gallons/Minute Max.
1/4″ NPT Fluid Port
Intake & Discharge Connection 1/4″ Female NPT
Air Inlet 1/4″ Female NPT (includes ball valve)
Air Exhaust 3/8″ Female NPT (includes silencer)
Air Supply Pressure (All Models) 20 to 100 PSI (1.4 to 7 kgf/cm2)
Discharge Volume Per Cycle 0.0085 gallons (35 cc)
Maximum Cycles Per Minute All diaphragms: 400
Maximum Dry Suction Lift 5-feet
Air Motor Standard: Ryton® Air Motor
Muffler Internal
MAXIMUM LIQUID TEMPERATURE FITTED WITH PTFE DIAPHRAGM
Groundable Acetal 180F (82C)
Polypropylene (PPG) 180F (82C)
Kynar® (PVDF) 212F (100C)
Aluminum (ADC-12) 212F (100C)
Stainless Steel (316) 212F (100C)
Estimated delivery 1 to 4 days
Contact us for actual lead time
Product photo could vary from the actual product
Additional information
| Weight | 7 lbs |
|---|---|
| Shipping Dimensions | 14 × 12 × 12 in |
| Connections | |
| Max GPM | |
| Wetted Material |
