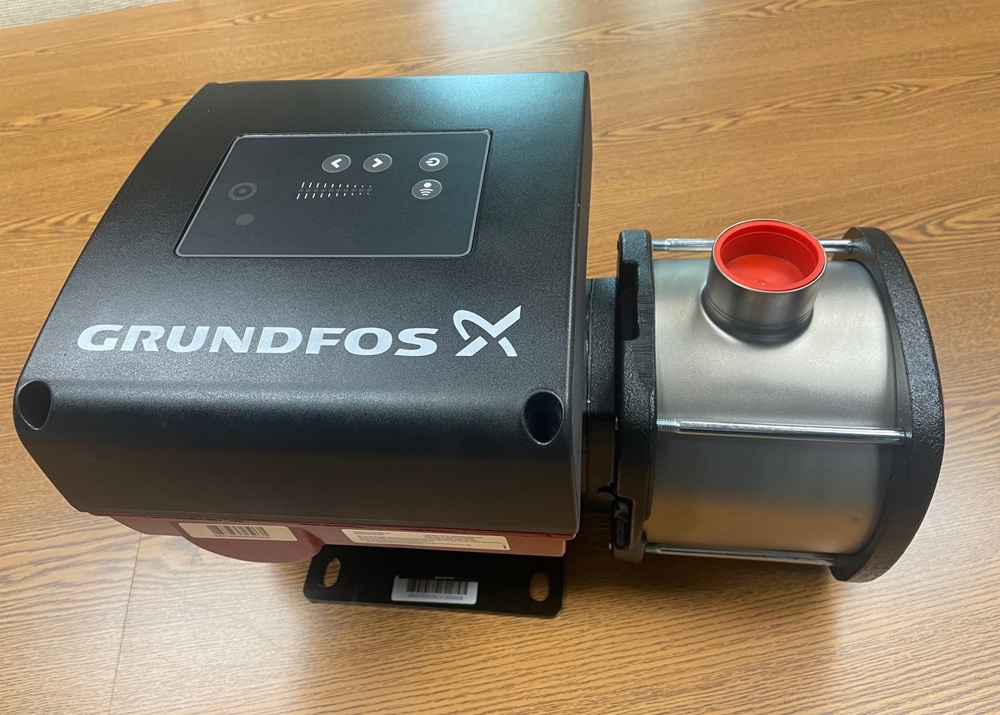

Grundfos CME 10-2 Part# 92610424

Model # :       CME10-2 A-S-I-E-AQQE S-A-D-N
Part # :          92610424

Original price was: $5,241.00.Current price is: $3,144.60.

1 in stock (can be backordered)

CME10-2 A-S-I-E-AQQE S-A-D-N, 3 HP, 3 x 380-500 V, 60 Hz

BEP 50 GPM @ 120FTH

Pump housing – Stainless steel

CME is a reliable, quiet and compact horizontal end-suction pump with integrated frequency converter and intelligent features. The modular pump design makes it easy to make customized solutions.

1 in stock (can be backordered)

Original price was: $5,241.00.Current price is: $3,144.60.

SKU: 92610424 Category:

Description

CME are reliable, quiet and compact horizontal end-suction pumps. The modular pump design makes it easy to make customized solutions. The pumps are available in cast iron and stainless steel

The terminal box holds terminals for these connections:

  • one dedicated digital input
  • two analog inputs, 0(4)-20 mA, 0-5 V, 0-10 V, 0.5 – 3.5 V
  • 5 V voltage supply to potentiometer and sensor
  • one configurable digital input or open-collector output
  • Grundfos Digital Sensor input and output
  • 24 V voltage supply for sensors
  • two signal-relay outputs (potential-free contacts)
  • GENIbus connection
  • interface for Grundfos CIM fieldbus module.
Controls:
Terminal box position: 12
Frequency converter: Built-in

Additional information

Weight 85 lbs
Shipping Dimensions 16 × 12 × 12 in
